Drill Pipe Screen – Precision Cuttings Filtration, Erosion and Corrosion Resistance

Drill pipe screens are an indispensable part of any directional drilling operation, serving to protect the automatic drilling equipment used in oilfield drilling. Proper protection of the automatic drilling machine is essential for achieving economical and efficient project execution. We offer perforated type drill pipe screens, slot type drilling pipe screens, rod type drilling pipe screens, as well as a wide range of outer rings and both retrievable and non-retrievable perforated type drill pipe screens. Our drill pipe screens are manufactured from stainless steel and undergo special surface treatments, providing extended service life as well as excellent corrosion and erosion resistance.

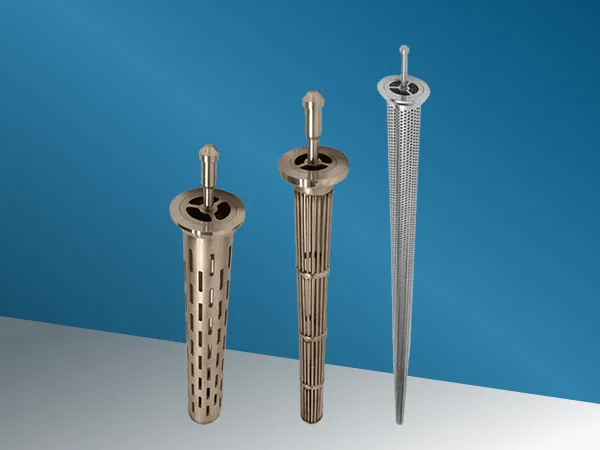

Various drill pipe screens on a white background

Type

Perforated Type Drill Pipe Screen
Slot Type Drilling Pipe Screen
Rod-Type Drill Pipe Screen

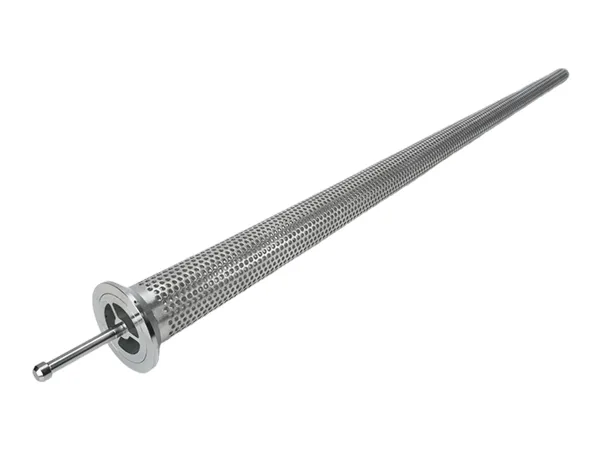

Perforated Type Drill Pipe Screen

Perforated type drill pipe screens, featuring a conical design, are most commonly used in low-flow drilling operations and for low-flow loss circulation materials (LCM). Our perforated type drill pipe screens are fabricated from premium 304/316 stainless steel and are typically installed below the Kelly drill pipe. Optional accessories include flanges, bolts, or 1/4" welded steel bars, with the latter offering a more economical solution. We offer length options ranging from 12" to 4'.

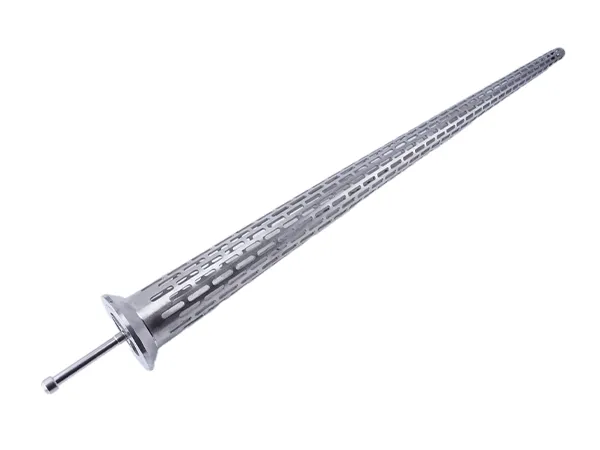

Slot Type Drilling Pipe Screen

Among the three types of drill pipe screens, the slot type drilling pipe screen is the most robust, thanks to its manufacturing process. Manufactured from solid stainless steel tubes, we mill 1/4" × 1" slots to ensure optimal flow while maintaining strength. This design is available in both retrievable and non-retrievable options, and is specifically engineered for drilling operations with high solids content. If required, a relief hole can be added near the flange at the top to increase flow capacity. Slot type drilling pipe screens are available in standard lengths.

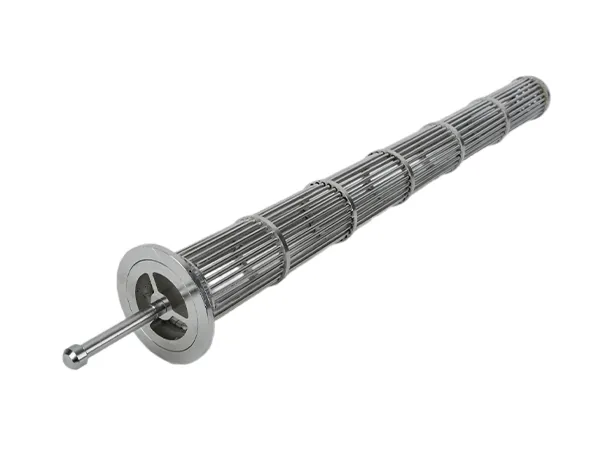

Rod-Type Drill Pipe Screen

Rod-type drill pipe screens are specifically engineered for wells with extremely high mud flow rates or elevated solids content. All our rod-type drill pipe screens are manufactured from 304/316 stainless steel, utilizing rod diameters of 1/4" or 3/16". Options for 16 or 20 bar are available to meet specific flow requirements.

Advantages

01

Erosion Resistance

Manufactured from stainless steel with a hard alloy coating for superior erosion resistance.

02

Cost Control

Components can be replaced based on its impact and damage conditions, eliminating the need for complete replacement and reducing costs.

03

Custom Fabrication

Drill pipe screens with specialized structures can be produced according to mud displacement requirements.

04

Flexible Configuration

The drill pipe screen consists of three sections, allowing customers to configure according to specific dimensions.

Specifications

Material: Stainless Steel 304 or 316
Thickness: No.7
Applicable sizes: 3-1/2", 4", 4-1/2", 5", and 5-1/2"
Anti-clogging capability: Screen open area ≥ 30% with self-cleaning design
Temperature Range: -30 °C to 150 °C
Length: 12" – 3'
Aperture: 5/16", 1/4", 3/16"
Filter rating: 20–200 mesh, selected according to formation cuttings size.
Fatigue life: ≥ 500 hours without failure
Compatibility: Compatible with oil-based, water-based, and synthetic-based drilling fluids; resistant to chemical corrosion.

Applications

The drill pipe screen is installed below the Kelly drill pipe to filter drilling fluid and safeguard MWD equipment and other downhole tools.
Perforated type drill pipe screens are most commonly used in low-flow drilling and low-flow lost circulation material (LCM) applications.
Slot type drilling pipe screens are specifically engineered for operations involving drilling fluids with high solids content.
Rod-type drill pipe screens are specifically engineered for wells with extremely high mud flow rates or elevated solids content.

Download

Please download our PDF files for more detailed product specifications and dimensions.
