Cementing Plug – Oil Resistance, Acid-Alkali Resistance & Excellent Displacement Performance

We provide three types of cementing plugs: standard type, non-rotating type, and wiper type. All types are typically used in pairs as upper and lower plugs. According to the design, the upper plug is solid core, while the lower plug is hollow. When the lower plug withstands a pressure of 2–4 MPa, the rubber membrane can be ruptured, providing a channel for the cement slurry and establishing circulation. Cementing plug core is manufactured from aluminum alloy or polymer materials, while the plug is made from high-quality nitrile rubber. The structure adopts the 5W type design.

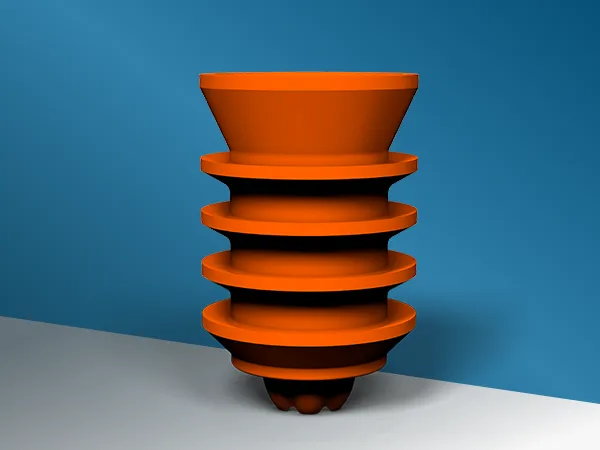

Various cementing plugs on a blue background
Type
  • Standard Type
  • Non-Rotating Type
  • Wiper Type

Standard Cementing Plug

The standard cementing plug is constructed from graded rubber fused onto a composite or aluminum core. For double-plug cementing, both plugs are used; for single-plug cementing, typically only the upper plug is utilized. The plug core is made of drillable material, making it fully drillable with a PDC drill bit.

Application: Standard type cementing plugs are suitable for various float collars and float shoes.

Advantages: Conventional design with five wiper fins for effective casing wiping; Drillable with PDC and roller cone bits; The bottom plug is equipped with an integrated rupture disk.

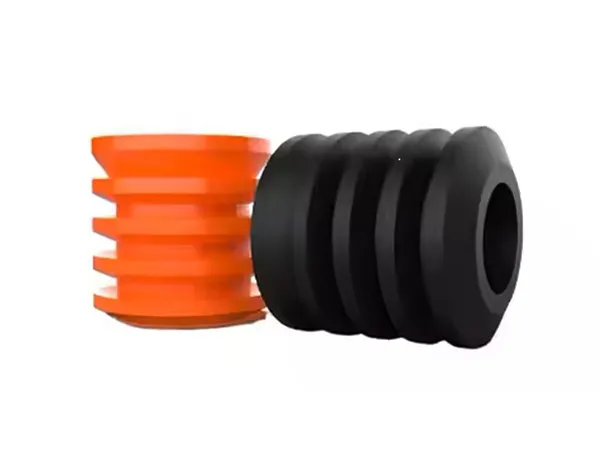

Standard cementing plug on a white background

Non-Rotating Cementing Plug

The non-rotating cementing plug is equipped with a non-rotating guide plate, manufactured from phenolic resin compressed under high temperature and high pressure, providing excellent torque resistance; the outer shell is made of wear-resistant nitrile rubber. All components are drillable.

Application: The non-rotating cementing plug is suitable for non-rotating type float collars and float shoes.

Advantages: It reduces drilling-out time and lowers operational costs; dual-stage sealing design delivers superior sealing performance.

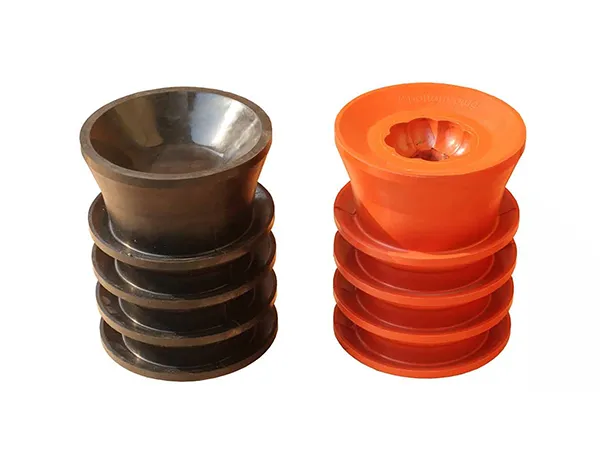

Non-rotating cementing plugs on a white background

Drill Pipe Wiper Plug

The drill pipe wiper plug is used to wipe the interior of the drill pipe and running tools after cementing is completed, ensuring the pipe remains clean and ready for use. The plug is launched from the cementing head and is pumped through the drill pipe and running tools by fluid circulation. They can be used in various ways and are manufactured from different materials, including PTFE or aluminum.

Application: Used in inner string cementing operations, this cementing technique is especially suitable for large-diameter (16" – 30") conductor or surface casing cementing, effectively solving the challenges associated with large-diameter cementing plugs and cement heads.

Advantages: Dual-stage sealing design for superior sealing performance; excellent wear and temperature resistance.

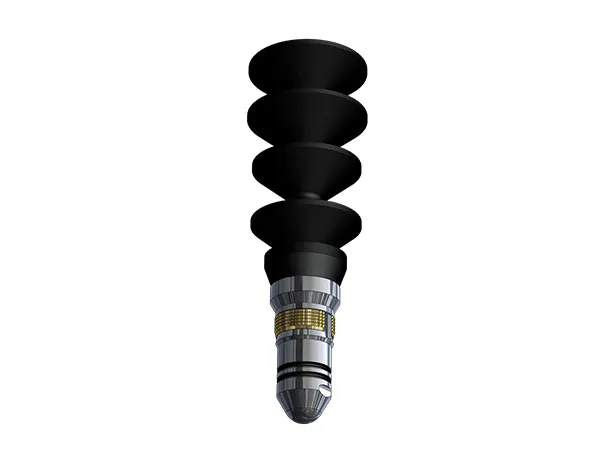

Drill pipe wiper plug on a white background
Advantages
01

The wiper fin made of polyurethane offers excellent casing cleaning capability and superior wear resistance.

02

Our non-rotating plug features an non-rotating mechanism, significantly increasing drill-out speed.

03

Our products are aluminum or composite material plugs, designed for rapid drill-out to save subsequent operation time.

04

Compatible with a wide range of casing sizes (4-1/2" – 20") and suitable for high-temperature, high-pressure wells (temperature resistance up to 200 °C).

Specifications Background
Specifications
  • Material: The plug is made of natural rubber with an internal aluminum alloy or phenolic resin core.
  • Types: Standard type, non-rotating type, wiper type
  • Sizes: 2-3/8" – 20", with other special sizes available.
  • Lower plug (bottom plug): Hollow, featuring a rupture diaphragm at 300 psi differential pressure.
  • Reverse sealing pressure: ≥ 3,000 psi with no leakage.
  • Wiper fin: 5 fins (customizable upon customer requirements).
  • Temperature resistance: Up to 200 °C or higher.
  • Pressure rating: From 3,500 PSI to 8,000 PSI.
  • Upper plug: Solid core.
  • Test standard: API 10D
Applications
  • Effectively isolates cement slurry to prevent mixing with drilling fluid.
  • Capable of wiping cement slurry adhering to the inner wall of the casing.
  • When the cementing plug contacts the float collar, it can accurately indicate the completion and integrity of the cementing operation.
Worker measuring cementing plug
Downloads Background
Download

Please download our PDF files for more detailed product specifications and dimensions.
